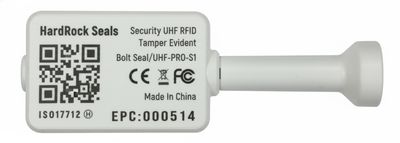

Tamper Evident High-Secure RFID Bolt Seals

This high-security RFID bolt seal is engineered for durable container protection and reliable electronic identification across global supply-chain environments. With a reinforced ABS body and a galvanized carbon-steel bolt, it delivers superior strength, tamper resistance, and long-range UHF RFID readability. Fully compliant with ISO 17712:2013 high-security standards and ISO/IEC 18000-6C, this seal ensures both physical and digital security for international shipping.

• Main Body: ABS plastic
  63.0 × 40 mm (2.48 × 1.57 inches)

• Bolt: A3 (Q235) galvanized + carbon steel
  88.5 × 20.4 mm (3.48 × 0.80 inches)

• Tensile Strength: ≥10 kN for high-security applications

•  Color: White, Orange, Green, Blue, Red, Yellow

• Frequency: 902–928 MHz (U.S. standard UHF)

• Operation Mode: Passive

• Read Range: 0–7 m (up to 10 m depending on reader & antenna)

• Status Indication: Locked / unlocked detection - Tamper Evident

• Memory: Non-rewritable for maximum security


• Operating Temperature: –40°C to +80°C

• Storage Temperature: –40°C to +85°C

• Relative Humidity: 5% to 95%


• ISO/IEC 18000-6C (UHF RFID protocol)

• ISO 17712:2013 High-Security Bolt Seal

• Custom Laser Marking Available: logo, barcode, serial number, etc.


• Carton Dimensions:
  51 × 50 × 39 cm (20.08 × 19.69 × 15.35 inches)

• Carton Weight: 20 kg

• Quantity: 300 seals per carton
